Components of The Vertical Pool
While unique in design and a new attempt to do more with less, The Vertical Pool is a compilation of components manufactured by outside companies, all of which have been in business for many years. The plumbing control, pump, and filter elements can be repaired or replaced by any pool maintenance company in the country.
Swim-against jets are Not an option with this pool as they intimidate many of the elderly and physically challenged for whom this design was created. There is a treadmill option available by www.aquabilt.com as well as resistance tools and equipment by www.aqualogixfitness.com.
In colder climates an indoor or garage installation is viable and practical. Call for details.

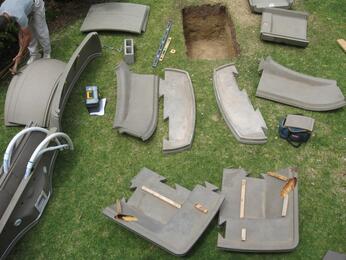

- The pool is comprised of 16 rotationally molded plastic parts.
Each part has an inner and outer wall about 3/16” thick with an
approximately 2 ½” cavity between, which is injected with foam
for an R-value of about 12. www.rotationalmoldinginc.com

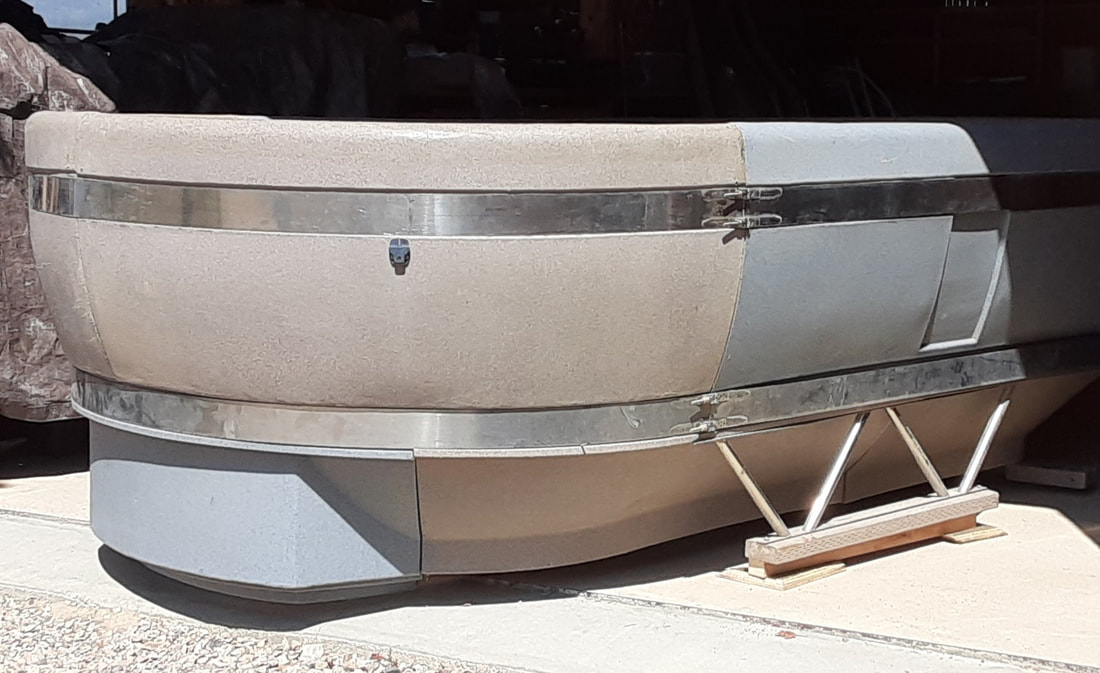

- 3” wide stainless steel bands gird the pool on 4 levels. www.clampco.com
- Control unit/heater - 6100 series. 5.5 kw element provides
adequate heat of 85 to 92 degrees when using a 110 GFCI
plug-in receptacle. Topside pad has buttons for high and low
pump speeds, multi-colored light, and temperature setting. www.hydroquip.com
- 1 hp 2 speed pump, plumbing manifolds, filter, skimmers, tubing, fittings. www.waterwayplastics.com
- Water sanitation with an Ionizer www.carefreeclearwater.com
- Water sanitation with the ISIS unit, a sodium bromide converter. www.pioneerh2o.com

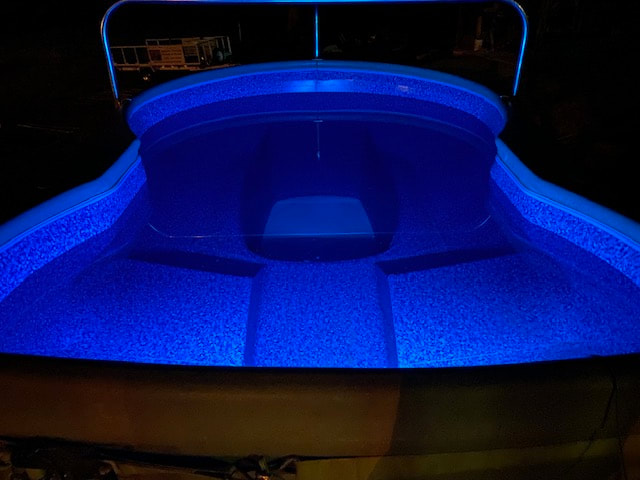

- Multicolored light mid-bow. www.oryanindustries.com
- Liner channel, QP-521. www.quakerproducts.com
- 20 mil vinyl liner (new with every installation). www.taramfg.com
- Insulated, locking pool cover. www.spacovers.com
- Vinyl panels for adjustable-height floor. www.nvpfences.com
- 1 ¼” stainless steel overhead bars and railings www.railmakers.com

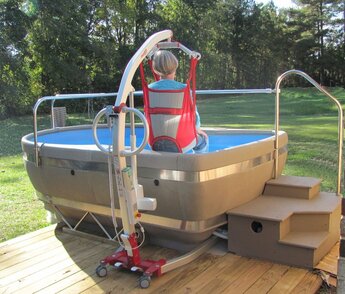

A variety of hardware options are available for special needs
- The steps are fabricated of ¾” plywood and matching color stains
in-house by The Vertical Pool, LLC.
- Treadmill (optional) www.aquabilt.com
- Resistance tools and equipment www.aqualogixfitness.com
Swim-against jets are Not an option with this pool as they intimidate many of the elderly and physically challenged for whom this design was created. There is a treadmill option available by www.aquabilt.com as well as resistance tools and equipment by www.aqualogixfitness.com.
In colder climates an indoor or garage installation is viable and practical. Call for details.
- The pool is comprised of 16 rotationally molded plastic parts.
Each part has an inner and outer wall about 3/16” thick with an
approximately 2 ½” cavity between, which is injected with foam
for an R-value of about 12. www.rotationalmoldinginc.com
- 3” wide stainless steel bands gird the pool on 4 levels. www.clampco.com
- Control unit/heater - 6100 series. 5.5 kw element provides
adequate heat of 85 to 92 degrees when using a 110 GFCI
plug-in receptacle. Topside pad has buttons for high and low
pump speeds, multi-colored light, and temperature setting. www.hydroquip.com
- 1 hp 2 speed pump, plumbing manifolds, filter, skimmers, tubing, fittings. www.waterwayplastics.com
- Water sanitation with an Ionizer www.carefreeclearwater.com
- Water sanitation with the ISIS unit, a sodium bromide converter. www.pioneerh2o.com
- Multicolored light mid-bow. www.oryanindustries.com
- Liner channel, QP-521. www.quakerproducts.com
- 20 mil vinyl liner (new with every installation). www.taramfg.com
- Insulated, locking pool cover. www.spacovers.com
- Vinyl panels for adjustable-height floor. www.nvpfences.com
- 1 ¼” stainless steel overhead bars and railings www.railmakers.com
A variety of hardware options are available for special needs
- The steps are fabricated of ¾” plywood and matching color stains
in-house by The Vertical Pool, LLC.
- Treadmill (optional) www.aquabilt.com
- Resistance tools and equipment www.aqualogixfitness.com
Locking Child-proof Cover
Dimensions for Deep Pool;

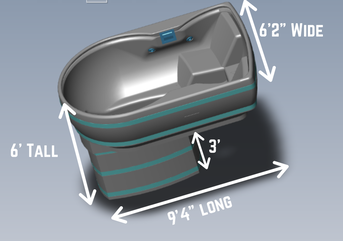

- Overall outside dimensions: 9' 4" long (add 2' 8" for the steps) x 6' 2" wide x 6' deep, with 3' of that depth in-ground for stability and 3' above-ground (kitchen counter height).

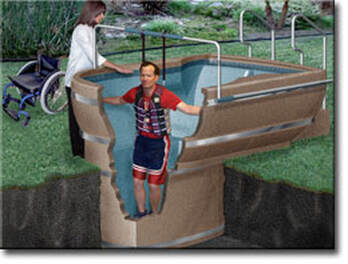

- The hole for the lower tub in-ground is 5' long x 3' wide x 3' deep. Typical installation requires about 40 cubic feet displaced to accommodate the lower tub.
- Total dry weight for all components, plumbing, electrical, liner, and steel; 750 lbs. (treadmill not incl)

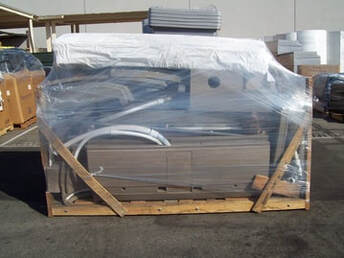

- The crate of all components for international delivery is 4' wide x 5' high x 8' long = 160 cubic feet.
- Water depth in the deep part is approximately 5' 7" when occupied.
- Total water capacity 900 gallons.
- The pool has a 110 GFCI 20A electrical requirement for heating and filtration.
- Topside control buttons for 2-speed pump, light, and temperature setting.
- The hole for the lower tub in-ground is 5' long x 3' wide x 3' deep. Typical installation requires about 40 cubic feet displaced to accommodate the lower tub.
- Total dry weight for all components, plumbing, electrical, liner, and steel; 750 lbs. (treadmill not incl)
- The crate of all components for international delivery is 4' wide x 5' high x 8' long = 160 cubic feet.
- Water depth in the deep part is approximately 5' 7" when occupied.
- Total water capacity 900 gallons.
- The pool has a 110 GFCI 20A electrical requirement for heating and filtration.
- Topside control buttons for 2-speed pump, light, and temperature setting.
Deep pool in picture above, shallow pool is below
Dimensions for Shallow Pool;
- Overall outside dimensions: 9' 4" long (add 2' 8" for the steps) x 6' 2" wide x 6' deep x 41 1/2" deep
- Total dry weight for all components, plumbing, electrical, liner, and steel; 680 lbs.
- The crate of all components for international delivery is 4' wide x 4' high x 8' long = 128 cubic feet.
- Water depth in the deep part is approximately 36" when occupied.
- Total water capacity 625 gallons.
- The pool has a 110 GFCI 20A electrical requirement for heating and filtration.
- Topside control buttons for 2-speed pump, multi-colored light, and temperature settings.
- Total dry weight for all components, plumbing, electrical, liner, and steel; 680 lbs.
- The crate of all components for international delivery is 4' wide x 4' high x 8' long = 128 cubic feet.
- Water depth in the deep part is approximately 36" when occupied.
- Total water capacity 625 gallons.
- The pool has a 110 GFCI 20A electrical requirement for heating and filtration.
- Topside control buttons for 2-speed pump, multi-colored light, and temperature settings.
Shallow pool; can sit On patio, ground, garage floor
